Cat6 FTP+2X24AWG+2C18AWG Audio Cable Unarmoured Composite Cable

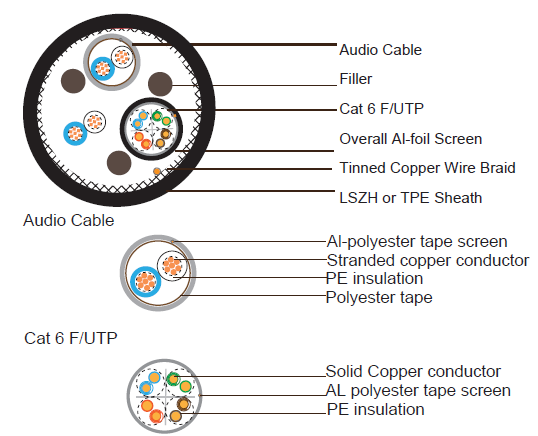

Construction:

Cat6 FTP+2X24AWG+2C18AWG Audio Cable Unarmoured Composite Cable

2C x18AWG Audio Cable

Conductor

7/0.404mm stranded copper wire, class 2 to IEC60228.

Insulation

PE.

Insulation Color

Black& Red.



Alumminum tape with tinned copper drain wire.

Cable

Screen

2C x24AWG Audio

Conductor

7/0.2mm stranded copper wire, class 2 to IEC60228.

Insulation

PE.

Insulation Color

Green& Yellow.

Cat 6 F/UTP

Conductor

24 AWG Solid copper,1/0.57mm.

Insulation

PE material. Nominal diameter is 0.97mm.

Insulation Color

White-blue,Blue;     White-orange,Orange;



White-green,Green; White-brown,Brown.

Alumminum tape with tinned copper drain wire.

Screen

Applications

IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;



IEEE 802.5 16 MB; ISDN; TPDDI; ATM.

Standards

ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B.

Element Assembly

Filler

PP material .

Overall Screen

Al-Polyester tape+ tinned copper wire braiding.

Outer Sheath

LSZH elastomer or TPE. Nominal thickness 0.8-1.0mm.

Sheath Color

Black. Other colors also available upon request.

Electrical and Physical Properties@20°C:

Audio Cable

Max.Electrical Resistance: 22Ohm/km for 18AWG Max.

Electrical Resistance: 76.4 Ohm/km for 24AWG

Min. Insulation Resistance: 1000 MOhm/km

Operating Temperature: -20°C/+70°C

Voltage rating: 300/500V

Insulation spark test: 2000 V r.m.s./H.F.

Max. Inductance: 0.75mH/km

Cat6 F/UTP  (1-250MHz)

Max.Electrical Resistance: 75.6 Ohm/km

Min.Insulation Resistance: 2000 MOhm/km

Operating Temperature: -20°C/+70°C

Max.Resistance Unbalance: 5%

Max. Mutual Capacitance: 5.6nF/100m

Max. Capacitance Unbalance: 330pF/100m

Characteristic Impedance : 100 :! 15 (1-250MHz)

Nominal Velocity of Propagation: 69%

Max. Propagation Delay : 536ns/100m@100MHz

Max.Propagation Delay skew : 45ns/100m(1-125MHz)

Test voltage (DC, 1 min) Core/Core : 1000V

Fire Performance:

Flame Retardance : IEC60332-1-2

Fire Propagation : IEC60332-3-22

Halogen Free: IEC60754-1/2

Low Smoke Capacity:  IEC61034-1/2

Oxygen Index : ISO 4589-2

Temperature Index :  ISO 4589-3
